Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001，ROHS
Model Number: Cable assembly or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: 1~2$
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Medical Custom Cable And Wire Harness Minor Diameter Multi Pin Twisted Pair |
Application Area: |
Various Monitoring Equipment, Ultrasonic Equipment, Electrophysiological Equipment And Other Medical Equipment |
Wire Harness Type: |
Flexible Cable Harness Or Customized |
OD: |
Customizable |
Color: |
Black ,purple Or Optional |
Length: |
800mm Or Customized |
DC Withstand Voltage: |
24V |
Insulation Resistance: |
5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Product Name: |
Medical Custom Cable And Wire Harness Minor Diameter Multi Pin Twisted Pair |
Application Area: |
Various Monitoring Equipment, Ultrasonic Equipment, Electrophysiological Equipment And Other Medical Equipment |
Wire Harness Type: |
Flexible Cable Harness Or Customized |
OD: |
Customizable |
Color: |
Black ,purple Or Optional |
Length: |
800mm Or Customized |
DC Withstand Voltage: |
24V |
Insulation Resistance: |
5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Medical custom cable and wire harness minor diameter multi pin twisted pair
1. Product description
Medical custom cable and wire harness minor diameter multi pin twisted pair is composed of multiple wires, which are arranged and fixed by means of stranded, thus reducing the volume of wire harness and improving flexibility.It is mainly used to connect various electronic components inside medical equipment.Multiple pins make conduction faster and less error-prone and customizable label on the line body.Strive to achieve your most satisfactory results.
|
Product Name |
Medical custom cable and wire harness minor diameter multi pin twisted pair |
|
Harness material |
Pass ISO13485,ISO9001 and ROHS certification |
|
Product application |
Small and medium-sized precision testing medical equipment |
|
Length, color |
Black and purple,800mm or customizable |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Electrical logging 100% , Mechanical property test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

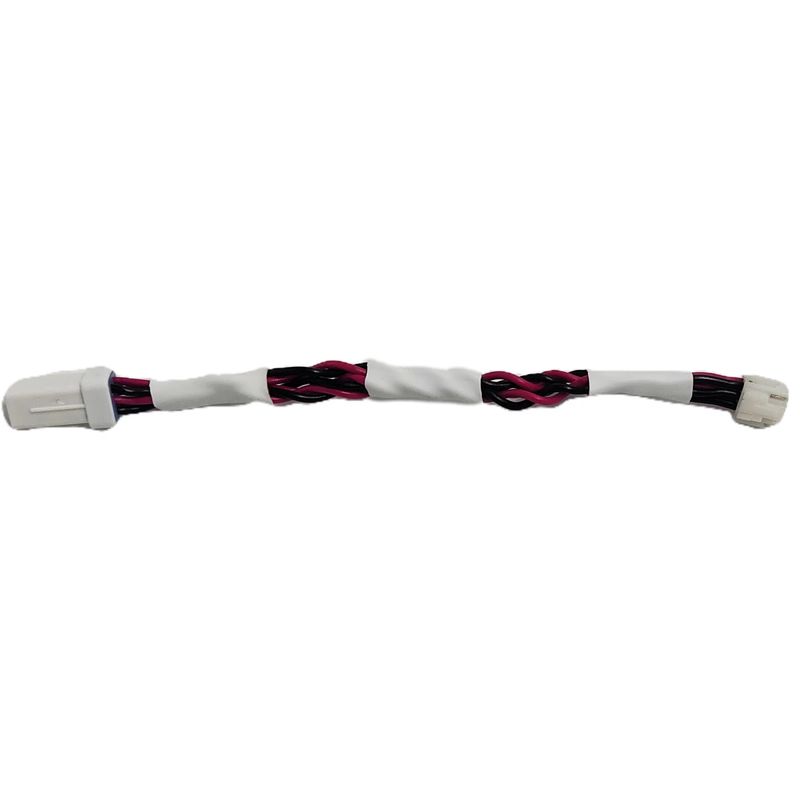

3. Picture of real products
4. Application area
I: Diagnostic imaging equipment: Medical customized cables and harnesses can be used to connect X-ray machines, CT scanners, magnetic resonance imaging (MRI) equipment, ultrasound equipment and other diagnostic imaging equipment. They transmit image data and control signals to ensure proper operation of imaging equipment and accurate diagnostic results.
II: Medical monitoring and physiological measurements: Medical customized cables and harnesses can be used to connect various monitoring devices such as heart rate monitors, oximeters, thermometers, electroencephalogram (EEG) devices, and others. They transmit physiological signals and data to support medical monitoring and diagnosis.
III: Surgical instruments and equipment: In the operating room environment, medical custom cables and harnesses can be used to connect surgical instruments and equipment such as electrosurgical knives, aspirators, microscopes, laparoscopes, and others. They provide power and signal transmission to support surgical operations and device control.
5. Feature
I: Multi-pin configuration: The medical wire harness has a multi-pin design and can contain multiple wires or signal wires. This makes it suitable for scenarios in medical devices where multiple signals or power sources need to be transmitted, such as monitors, surgical devices, etc.
II: Twisted-pair structure: The medical wire harness adopts twisted-pair structure, that is, the two wires are tied in a certain way. This structure can reduce interference and crosstalk and improve the stability and reliability of signal transmission.
